Sizing Ductless Heat Pumps for Hockinson Outbuildings and Shops

The Hidden Challenge of Cooling Hockinson Outbuildings in Late Summer

You step into your detached workspace at 3 p.m. in late August, and the wall thermometer reads a stifling 95 degrees, making it instantly clear why sizing ductless heat pumps for Hockinson outbuildings and shops requires a completely different approach than a standard home. The air is thick, the tools are hot to the touch, and running a simple box fan only pushes the heavy, warm air around. At Home Energy Group, our team typically sees property owners make the same initial mistake: they look up the square footage of the building, find a basic BTU chart online, and buy a unit that matches those numbers. However, treating a freestanding workshop like a residential living room is a guaranteed recipe for poor performance, wasted energy, and a space that never quite reaches a comfortable temperature.

If you are ready to upgrade your workspace and stop battling the end-of-season heat, explore our mini-split systems to see how our technicians tackle these unique environmental challenges.

Outbuildings possess fundamentally different thermal dynamics compared to traditional living spaces. A house is typically wrapped in thick insulation, shaded by eaves or nearby structures, and partitioned into smaller rooms that share the cooling load. A detached shop, on the other hand, is often an open expanse exposed to the elements on all four sides. When August late-summer heatwaves settle over the Pacific Northwest, these unshaded structures absorb solar radiation at an incredible rate, effectively turning into massive heat sinks. The sun beats down on the roof, the heat transfers directly into the open air volume below, and the ambient indoor temperature spikes rapidly.

Understanding these unique thermal challenges is the first step toward achieving real comfort. Relying on generic sizing rules ignores the physical reality of how heat moves through a non-traditional structure. Precision sizing is not just about making the room cold; it is about managing the specific rate at which heat enters the building and ensuring the equipment has the exact capacity to remove it before the space becomes unbearable.

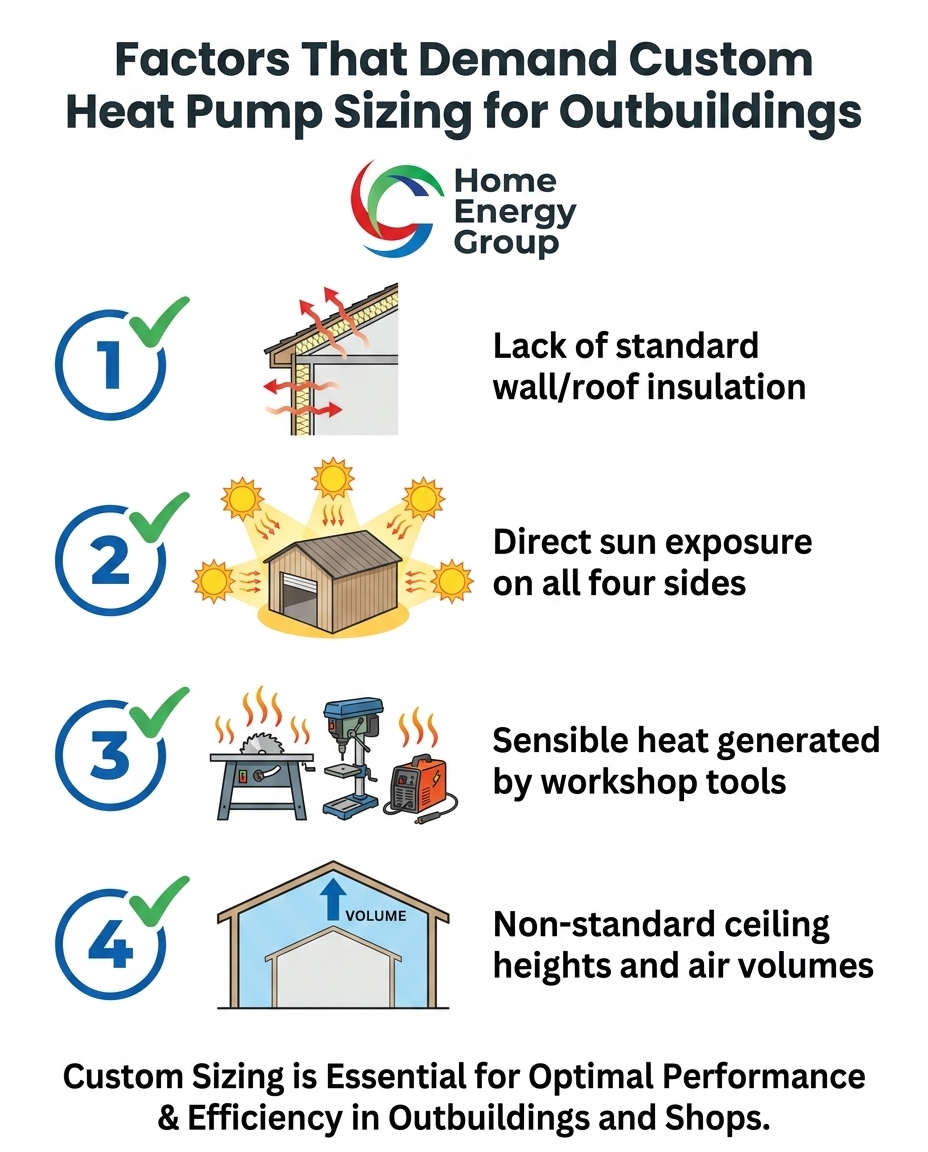

Key Factors That Make Outbuildings Unique

• Four-sided exposure: Unlike an attached room that shares at least one climate-controlled wall with the main house, a detached shop absorbs heat from every direction.

• Air volume vs. floor space: Vaulted ceilings or tall pole-barn roofs create a massive volume of air that must be cooled, even if the floor space seems relatively small.

• Lack of passive shading: Many workshops sit in open areas of the property, taking the full brunt of the afternoon sun without the benefit of mature shade trees.

• Thermal bridging: Metal frames and uninsulated structural components transfer heat directly from the outside air into the workspace much faster than wood-framed residential walls.

Why Residential Sizing Formulas Fail for Detached Workshops

Standard residential BTU (British Thermal Unit) charts are built on a very specific set of assumptions. They assume the structure features modern fiberglass or spray-foam insulation, standard eight-foot ceiling heights, double-pane windows, and minimal air leakage. In our years of serving Brush Prairie and the surrounding areas, we find that applying these highly specific residential rules to a pole barn or a custom workspace leads to drastic undersizing. If you are looking into garage heating and AC solutions, understanding this discrepancy is critical to getting a system that actually works.

Because a standard house retains its conditioned air quite well, a 400-square-foot living room might only need a small 9,000 BTU unit to stay perfectly comfortable. However, applying that same 9,000 BTU unit to a 400-square-foot detached shop will leave the compressor running non-stop while the room remains hot. The lack of shared, climate-controlled walls means the shop is fighting a constant battle against thermal gain from the outside environment. Every time the sun hits the metal siding, heat rushes into the space, overwhelming the undersized residential unit.

The Square Footage Myth

A pattern we see often is property owners trusting the "square footage myth." Square footage only measures the floor. It completely ignores the height of the ceiling, the materials used to build the walls, the color of the roof, and the direction the windows face. In Hockinson detached garages and workshops, a 20-foot vaulted ceiling means you are cooling more than double the actual air volume of a standard residential room with the exact same footprint.

• Ceiling Height — Standard Residential Home: Typically 8 to 9 feet — Detached Workshop / Outbuilding: Often 10 to 16+ feet (vaulted)

• Wall Construction — Standard Residential Home: R-13 to R-21 insulation standard — Detached Workshop / Outbuilding: Often minimal, partial, or zero insulation

• Sun Exposure — Standard Residential Home: Partially shaded by neighboring homes/trees — Detached Workshop / Outbuilding: Fully exposed on all four sides

• Air Infiltration — Standard Residential Home: Sealed doors, weatherstripping, vapor barriers — Detached Workshop / Outbuilding: Large bay doors, roll-up doors, drafty gaps

To overcome the square footage myth, our HVAC professionals at Home Energy Group use specialized load calculations designed specifically for non-traditional spaces. These calculations measure the total volume of air, the specific heat transfer rates of the building materials, and the orientation of the structure relative to the sun. This mathematical approach guarantees that the system has enough capacity to handle the specific environmental demands of the building, rather than just guessing based on the size of the floor.

The Impact of Insulation Deficits on Thermal Load

Insulation is the primary defense against heat transfer. When an outbuilding has missing, partial, or degraded insulation, the cooling requirements change dramatically. In the HVAC industry, we measure heat transfer using U-values. A high U-value means heat passes through the material very easily. Uninsulated walls and roofs have exceptionally high U-values, allowing the intense heat of the afternoon sun to radiate directly into the workspace.

The impact of the August sun beating down on an uninsulated metal or shingle roof creates a rapid, aggressive spike in the indoor ambient temperature. Furthermore, our team frequently encounters Hockinson detached garages and workshops that feature uninsulated concrete slabs. While concrete can feel cool in the morning, it absorbs and stores heat throughout the day. By late afternoon, that massive slab of concrete begins radiating stored heat back into the room, adding a massive secondary thermal load that the ductless heat pump must fight against.

Unvented attics or exposed metal roofs trap hot air at the highest point of the structure. Because heat rises, this trapped thermal energy acts like a heavy blanket pressing down on the workspace below. Proper sizing must calculate these exact insulation deficits. If the load calculation assumes a standard R-30 insulated roof, but the shop actually has exposed metal decking, the ductless system will fall thousands of BTUs short of what is actually required to maintain a consistent, comfortable temperature.

Overcoming legacy construction challenges requires a customized approach rather than a one-size-fits-all guess. One local homeowner living in a 1950s house with remnants of three outdated HVAC systems experienced this firsthand. When tackling their property's complex thermal challenges, our Home Energy Group team deduced the best system by creating a custom plan tailored to the specific structural deficits, resulting in an efficient installation that finally managed the temperature extremes effectively. This same rigorous planning is exactly what uninsulated outbuildings demand.

Factoring in Sensible Heat from Workshop Equipment

Standard online calculators assume a room is occupied by a couple of people sitting on a couch watching television. They completely miss the internal heat generation that is entirely unique to active workspaces. In the HVAC world, the heat generated by machinery, lights, and people is known as "sensible heat." When you fire up heavy equipment inside an enclosed space, you are essentially turning on multiple small space heaters.

Common heat-generating tools found in Hockinson detached garages and workshops add a massive internal thermal load to the building. An air compressor kicking on, a welding rig running for thirty minutes, or a bank of high-intensity shop lights burning all day will drastically raise the ambient temperature. Even the friction from power saws and drill presses contributes to the sensible heat load. Furthermore, if you have two or three people working actively in a confined shop, the human body acts as an additional heat source.

Common Sources of Internal Thermal Load

• Welding equipment: Generates extreme localized heat that quickly dissipates into the surrounding air.

• Air compressors: Electric motors produce significant thermal runoff during long compression cycles.

• High-intensity lighting: Halogen or older fluorescent bay lights run incredibly hot compared to modern LEDs.

• Dust collection systems: Large motors running continuously add steady, measurable heat to the room.

Ignoring these internal heat sources results in a system that performs fine when the shop is dark and empty on a Sunday morning, but fails completely when the heavy work begins on a Tuesday afternoon. When our technicians perform a professional load calculation, we inventory the specific equipment you plan to use, calculate the sensible heat output of those tools, and add that required capacity to the final BTU recommendation. This ensures the ductless system can keep up with both the weather outside and the work happening inside.

The Dangers of Short-Cycling in Improperly Sized Units

Getting the sizing wrong carries severe mechanical consequences. While undersizing leaves the shop hot and miserable, oversizing a unit creates a completely different, yet equally damaging, set of problems. When a ductless heat pump is too large for the space, it cools the air far too quickly. This causes the system to turn on, blast the room with cold air, and shut off just minutes later. This rapid on-and-off behavior is known as short-cycling.

Short-cycling is terrible for both your comfort and your equipment. Proper heat pump installation relies on the system running in long, steady cycles. During August late-summer heatwaves, the humidity in the air combines with the high temperatures to make the environment feel heavy and sticky. A ductless system needs time to draw that humid air over its cold evaporator coils to extract the moisture. If the system short-cycles and shuts off after five minutes, it lowers the temperature but leaves all the humidity in the room, resulting in a cold, clammy, and uncomfortable workspace.

The mechanical toll of short-cycling:

• Premature compressor wear: The most stressful moment for an HVAC system is the startup phase. Turning on and off dozens of times an hour grinds down the compressor components rapidly.

• Spiking energy bills: An oversized unit draws massive amounts of startup electricity repeatedly, destroying the energy efficiency the system was designed to provide.

• Inconsistent temperatures: Rapid blasts of cold air create hot and cold spots throughout the shop, rather than an even, comfortable climate.

• Reduced lifespan: A system designed to last 15 years may fail in half that time if forced into a continuous short-cycling pattern.

Matching the BTU output precisely to the thermal load ensures the system runs in long, efficient, and quiet cycles. This steady operation perfectly dehumidifies the air, protects the internal mechanical components, and keeps your monthly energy costs as low as possible.

Precision Load Calculations vs. Online BTU Rules of Thumb

With so many variables at play, guessing the required capacity of a ductless system is an expensive gamble. Relying on DIY BTU calculators or generic online rules of thumb is dangerous because those tools are explicitly designed for standard residential living rooms, not complex outbuildings. A proper evaluation requires site-specific engineering and a deep understanding of local environmental factors.

As local experts, our team at Home Energy Group focuses heavily on performing precise load calculations for non-traditional spaces rather than relying on standard residential rule-of-thumb guessing. A professional load calculation takes into account the exact insulation levels (or lack thereof), the placement and quality of the windows, the specific sun exposure of the property, and the sensible heat generated by your daily equipment usage. This data-driven approach removes the guesswork entirely.

This commitment to precision is exactly why one customer, after receiving multiple quotes for a new heating and cooling system, chose our team for the professionalism demonstrated during the evaluation. We provided three detailed quotes that thoroughly explained the system qualities and exact load requirements, leading to a highly responsive and valued setup. When you use an accurate HVAC SEER calculator and pair it with a professional load calculation, you ensure the system runs at absolute peak efficiency.

Unique spaces demand customized calculations. Hockinson detached garages and workshops are significant investments, and the equipment you install to protect them should be selected with exact engineering. We recommend professional sizing because it protects your investment by ensuring the compressor operates within its designed parameters, delivering reliable comfort without the constant threat of mechanical failure.

Preparing Your Shop for Efficient Year-Round Comfort

Solving the immediate cooling problem is just the beginning. A correctly sized ductless system transforms an unusable, sweltering shop into a highly productive, comfortable year-round workspace. By addressing the specific thermal loads of Hockinson detached garages and workshops, you gain complete control over your environment, regardless of what the weather is doing outside.

It is important to remember that properly sized systems also provide highly efficient winter heating. The exact same load calculations that ensure your shop stays cool during the summer will guarantee that the system has the capacity to keep you warm when the temperatures drop in January. A precision-sized heat pump acts as a comprehensive climate solution, extracting heat from the outdoor air in the winter and reversing the process to reject heat in the summer.

If you are considering upgrading your property, you might also want to explore what makes the best AC system for your home and how those same high-efficiency standards apply to your outbuildings. Energy-efficient upgrades often qualify for general federal tax credits or local utility rebates, making this an excellent time to invest in your property. We always advise readers to verify current programs locally with their utility provider or a tax professional to take full advantage of available incentives.

Do not wait until the next major temperature spike makes the space unbearable. As the back-to-school transition begins and late-summer heat lingers, preparing your shop now ensures that when extreme weather hits, you can continue working in perfect comfort without giving the outdoor temperature a second thought.

Ensure Your Workshop Stays Cool with Expert Sizing

Guessing the size of a heat pump based on floor space alone is an expensive mistake that leads to poor dehumidification, mechanical wear, and a miserable workspace. Outbuildings require a tailored approach that accounts for their unique lack of insulation, immense air volume, and internal heat generation.

If you are struggling through August late-summer heatwaves in a sweltering shop, it is time to get a professional evaluation of your unique structure. Schedule a consultation with our local experts at Home Energy Group today, and let us perform the precise load calculations necessary to transform your outbuilding into a comfortable, efficient workspace all year long.

Frequently Asked Questions

What size mini split do I need for an uninsulated shop?

The exact size depends on a professional load calculation that factors in ceiling height, sun exposure, and internal heat generation. An uninsulated shop requires significantly more capacity than a standard insulated room of the same square footage. Relying on basic floor measurements will result in an undersized unit that runs constantly without effectively cooling the space. Always have our professionals assess the specific thermal deficits of the building before purchasing equipment.

Why is my garage mini split short cycling?

Short-cycling usually occurs when the mini-split is too large for the space it is trying to cool. The oversized system blasts cold air, drops the temperature rapidly, and shuts off before it has a chance to dehumidify the room. This rapid on-and-off process causes severe wear and tear on the compressor components and leads to a clammy, uncomfortable environment. Proper sizing ensures the unit runs in long, steady cycles.

Can you put a mini split in an uninsulated garage?

Yes, you can install a mini-split in an uninsulated garage, but the system must be sized specifically to handle the massive heat transfer through the walls and roof. Without insulation, the thermal load is exceptionally high, meaning you will need a higher-capacity unit than you would for an insulated space. While adding insulation is always recommended for efficiency, a properly calculated and sized heat pump can still provide effective comfort.

How many BTUs do I need to cool a workshop?

There is no single BTU answer for a workshop because every outbuilding has unique variables like metal roofs, concrete slabs, and varying ceiling heights. A standard residential chart might suggest 12,000 BTUs for a 500-square-foot room, but an uninsulated workshop of the same size might require double that capacity or more. An expert load calculation is the only way to determine the exact BTU requirement for your specific building.

Does workshop equipment affect the size of the heat pump I need?

Yes, tools like welders, air compressors, and heavy machinery generate a significant amount of sensible heat. This internal thermal load adds directly to the cooling requirements of the space. If a heat pump is sized without accounting for this equipment, the system will fail to keep the room cool as soon as you start working. Professional calculations always factor in the heat output of your active tools.

How do late-summer heatwaves impact my outbuilding's cooling requirements?

Late-summer heatwaves maximize the thermal load on your outbuilding, especially if it lacks shade and insulation. The prolonged exposure to intense solar radiation causes the structure to absorb and trap massive amounts of heat, pushing your cooling system to its absolute limits. A properly sized system accounts for these peak regional temperature spikes, ensuring your workspace remains comfortable even on the hottest days of the year.
